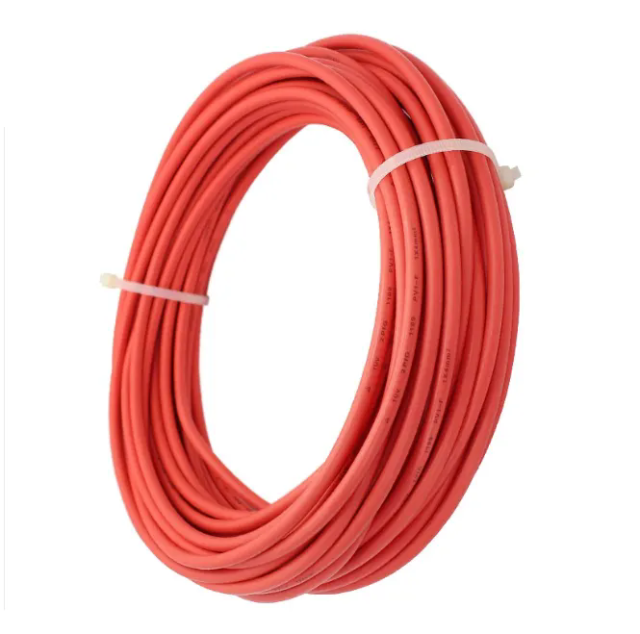

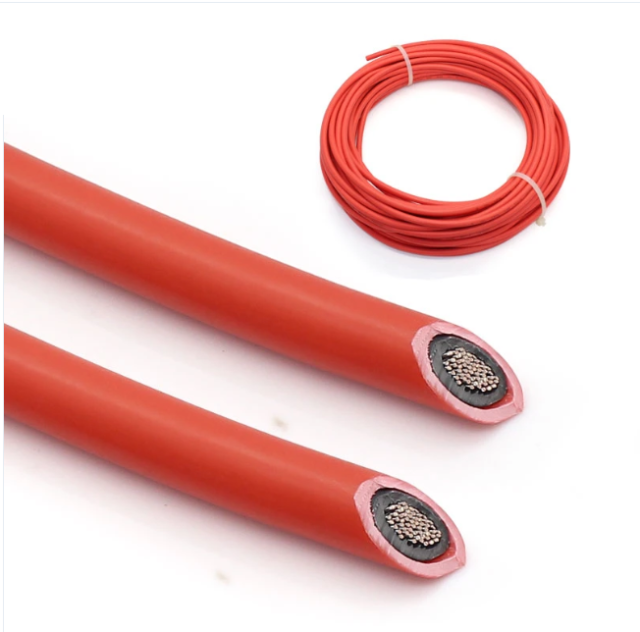

| MODEL | PV1-F |

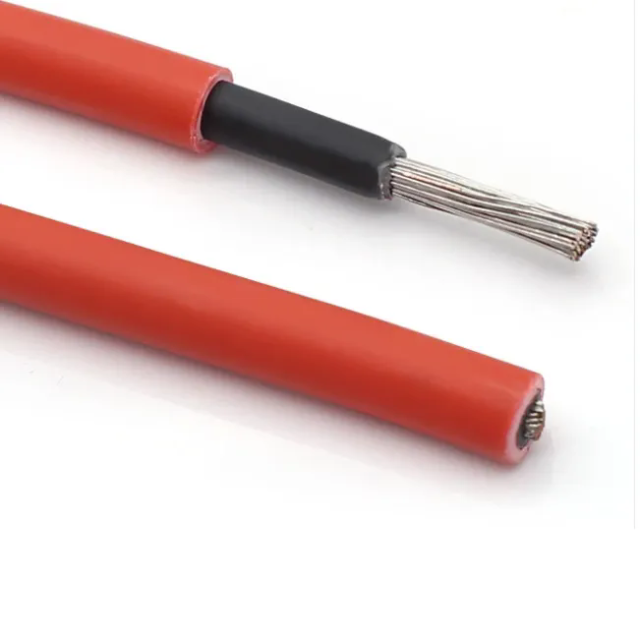

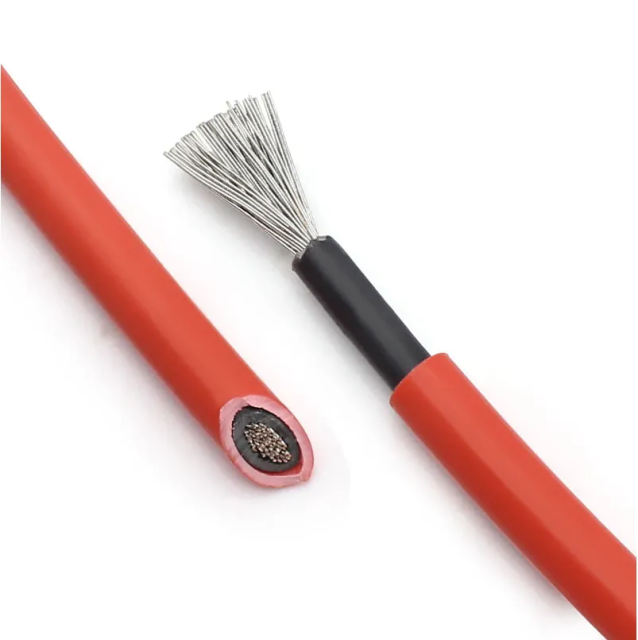

| Conductor | Tinned copper wire,class 5 (as per IEC 60228) |
| Insulation | No Halogen PO insulation |
| Sheath | No Halogen PO sheath |
| rated voltage | AC 0.6/1KV |
| DC 1.8KV | |
| Temperature range | -40°C~+90°C,dry/ humidity |
| Max.working temperature of conductor | 120°C |
| During short circuit | 200°C |
| Standard | EN 2PFG 1169 |
| type | Cross Sectional Area(mm2) | Conductor structure( Strand /mm) | diameter(mm) | insulation thickness(mm) | sheat thickness(mm) | cable diameter(mm) | DC resistance at 20°C(Ω/km) |
| PV1-F | 1.5 | 48/0.2 | 1.6 | 1.0 | 0.8 | 5.2 | 12.2 |
| PV1-F | 2.5 | 77/0.2 | 2.0 | 1.0 | 0.8 | 5.6 | 7.56 |
| PV1-F | 4 | 56/0.3 | 2.6 | 1.0 | 0.9 | 6.4 | 4.7 |
| PV1-F | 6 | 84/0.3 | 3.2 | 1.0 | 0.9 | 7.0 | 3.11 |
| PV1-F | 10 | 77/0.41 | 4.4 | 1.0 | 0.9 | 8.2 | 1.84 |
| PV1-F | 16 | 119/0.41 | 5.5 | 1.0 | 1.1 | 9.7 | 1.16 |
| PV1-F | 25 | 189/0.41 | 6.5 | 1.2 | 1.2 | 11.3 | 0.734 |
| PV1-F | 35 | 244/0.41 | 7.5 | 1.2 | 1.2 | 12.3 | 0.529 |
